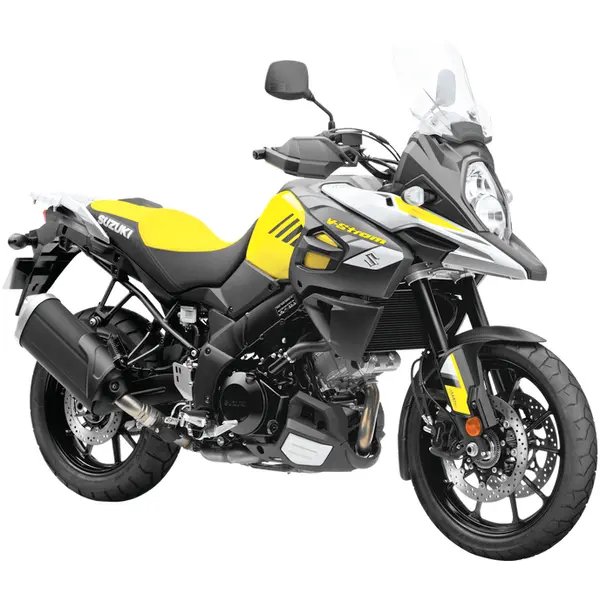

Suzuki DL 1000 V-STROM L8/L9 (EURO 4) (2017–2019) — Specs
Identity
Manufacturer: Suzuki
Model: DL 1000 V-STROM L8/L9 (EURO 4)
Category: Adventure
Type: Motorcycle
Years: 2017 → 2019
Engine
Displacement (cc): 1037
Cylinders: 2
Power (hp): 101
Power (kW): 74
Torque (Nm): 101
Dimensions
Overall length: 2270 mm
Overall width: 920 mm
Overall height: 1430 mm
Wheelbase: 1545 mm
Ground clearance: 220 mm
Weight (kg): 232
Seat height (mm): 850
Tank (L): 20
Tires
Front tire: 90/90-21
Rear tire: 150/70-18
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 530 chain, 116 links
Sprockets (front / rear): 17 / 41
Ignition
Spark plug: NGK LMAR8BI-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-40, API SG
Engine oil (with filter, L): 3.1
Engine oil (without filter, L): 2.7
Oil filter: Hiflofiltro HF973
Air filter: Hiflofiltro HFA3101
Coolant (L): 2.1
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~400 km on a full tank (20.0 L)
Service
Battery: YTX12-BS
Service interval (km): 12000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 12,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake 0.10-0.20 mm cold, exhaust 0.20-0.30 mm cold. Engine oil: oil grade SAE10W-40, API SG, 3.1 L with filter change, 2.7 L without filter change. Spark plug: NGK LMAR8BI-9. Brake fluid: DOT 4. Coolant capacity: 2.1 L. Chain: 116 links, sprockets 17/41 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 90/90-21, rear 150/70-18. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-40, 3.0 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF973
- Premium Hiflofiltro HF973
- Premium K&N KN-973
Air filter
Spec: Hiflofiltro HFA3101
- Standard Hiflofiltro HFA3101
Spark plug
Spec: NGK CR8E, gap 0.7-0.8 mm
- OEM NGK CR8E
- Premium NGK CR8EIX
- Standard NGK CR8E
Front brake pads
Spec: OEM front pad (EBC equivalent: FA379HH)
- Premium EBC FA379HH
- Standard EBC FA379 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA174HH)
- Premium EBC FA174HH
- Standard EBC FA174 (organic)
Drive chain
Spec: 116 links | Sprockets 17/41 teeth / 116 links
Front tire
Spec: 90/90-21, 2.5 bar
- OEM OEM 90/90-21
Rear tire
Spec: 150/70-18, 2.9 bar
- OEM OEM 150/70-18
Battery
Spec: OEM battery: Yuasa YTX12-BS
- Premium Yuasa YTZ14S or YTX14-BS (typical 1000-1300cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.10 L coolant capacity
Service interval
Spec: 12 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: 0.10-0.20 mm cold
- OEM Exhaust clearance: 0.20-0.30 mm cold
Suspension
Spec: 43 mm USD fork
- OEM Fork: 43 mm USD fork
