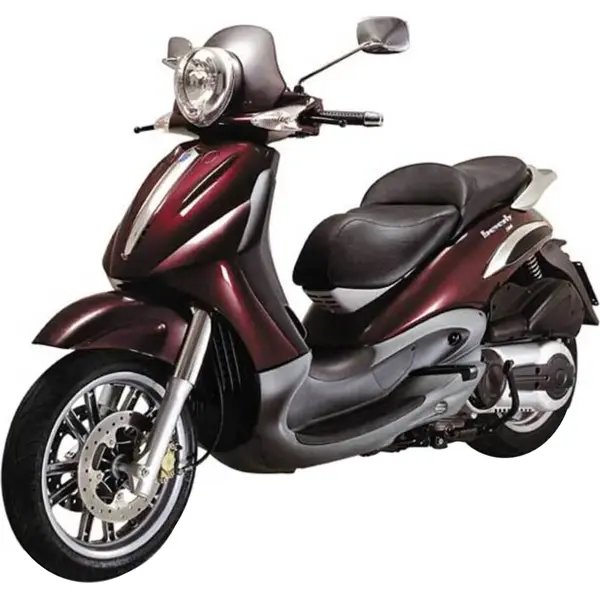

Piaggio BEVERLY 500 (2004–2008) — Specs
Identity
Manufacturer: Piaggio
Model: BEVERLY 500
Category: Scooter
Type: Scooter
Years: 2004 → 2008
Engine
Displacement (cc): 459
Cylinders: 1
Power (hp): 39
Power (kW): 29
Torque (Nm): 41
Dimensions
Overall length: 1900 mm
Overall width: 730 mm
Overall height: 1170 mm
Wheelbase: 1335 mm
Ground clearance: 125 mm
Weight (kg): 201
Seat height (mm): 780
Tank (L): 13.2
Tires
Front tire: 120/70-15
Rear tire: 160/60-15
Front pressure (bar): 2.2
Rear pressure (bar): 2.2
Ignition
Spark plug: NGK CR7EKB
Plug gap: 0.8 mm
Fluids & Filters
Engine oil: SAE5W-40
Engine oil (with filter, L): 1.5
Engine oil (without filter, L): 1.5
Oil filter: Hiflofiltro HF184
Air filter: Hiflofiltro HFA5201
Coolant (L): 1.7
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~293 km on a full tank (13.2 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 20000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 20,000 km. Valve clearance — intake cold 0.15 mm, exhaust cold 0.15 mm. Engine oil: oil grade SAE5W-40, 1.5 L with filter change, 1.5 L without filter change. Spark plug: NGK CR7EKB (gap 0.8 mm). Brake fluid: DOT 4. Coolant capacity: 1.7 L. Tire pressure: front 2.2 bar, rear 2.2 bar (cold). Tire size: front 120/70-15, rear 160/60-15. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE5W-40, 1.5 L (with filter), 1.5 L (without filter)
- OEM OEM recommended engine oil (SAE 5W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF184
- Premium Hiflofiltro HF184
- Premium K&N KN-184
Air filter
Spec: Hiflofiltro HFA5201
- Standard Hiflofiltro HFA5201
Spark plug
Spec: NGK CR7EKB, gap 0.8 mm
- OEM NGK CR7EKB
- Premium NGK CR7EIX
- Standard NGK CR7EKB
Front brake pads
Spec: EBC SFA266HH
- Premium EBC SFA266HH
Rear brake pads
Spec: EBC SFA266HH
- Premium EBC SFA266HH
Front tire
Spec: 120/70-15, 2.2 bar
- OEM OEM 120/70-15
Rear tire
Spec: 160/60-15, 2.2 bar
- OEM OEM 160/60-15
Battery
- Premium Yuasa YTX9-BS or YTZ7S (typical 250-500cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.70 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 20 000 km
- OEM Intake clearance: cold 0.15 mm
- OEM Exhaust clearance: cold 0.15 mm
Suspension
Spec: 41 mm telescopic fork
- OEM Fork: 41 mm telescopic fork
