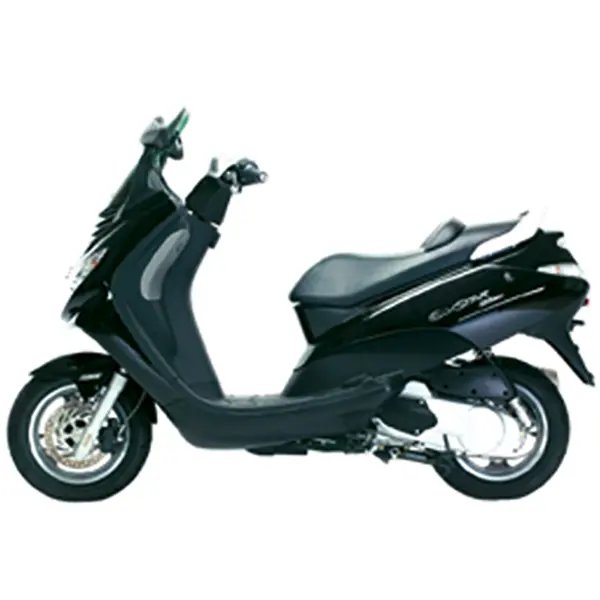

Peugeot ELYSTAR 125 (2003) — Specs
Identity
Manufacturer: Peugeot
Model: ELYSTAR 125
Category: Scooter
Type: Scooter
Years: 2003 →
Engine
Displacement (cc): 125
Cylinders: 1
Power (hp): 12
Power (kW): 9
Dimensions
Overall length: 1900 mm
Overall width: 730 mm
Overall height: 1170 mm
Wheelbase: 1335 mm
Ground clearance: 125 mm
Weight (kg): 155
Tank (L): 9
Tires
Front tire: 100/80-14
Rear tire: 120/70-14
Front pressure (bar): 2.1
Rear pressure (bar): 2.3
Ignition
Spark plug: NGK CR7EB
Plug gap: 0.7 mm
Fluids & Filters
Engine oil: SAE10W-40
Engine oil (with filter, L): 1.25
Oil filter: Hiflofiltro HF183
Air filter: Hiflofiltro HFA5114
Coolant (L): 1.6
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~300 km on a full tank (9.0 L)
Service
Battery: YTX7L-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 18000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 18,000 km. Valve clearance — intake 0.10 mm cold, exhaust 0.25 mm cold. Engine oil: oil grade SAE10W-40, 1.25 L with filter change. Spark plug: NGK CR7EB (gap 0.7 mm). Brake fluid: DOT 4. Coolant capacity: 1.6 L. Tire pressure: front 2.1 bar, rear 2.3 bar (cold). Tire size: front 100/80-14, rear 120/70-14. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, 1.25 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spark plug
Spec: NGK CR7EB, gap 0.7 mm
- OEM NGK CR7EB
- Premium NGK CR7EIX
Front brake pads
Spec: OEM front pad (EBC equivalent: SFA193HH)
- Premium EBC SFA193HH
- Standard EBC SFA193 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: SFA193HH)
- Premium EBC SFA193HH
- Standard EBC SFA193 (organic)
Front tire
Spec: 100/80-14, 2.1 bar
- OEM OEM 100/80-14
Rear tire
Spec: 120/70-14, 2.3 bar
- OEM OEM 120/70-14
Brake fluid
Spec: DOT 4
Coolant
Spec: 1.60 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 18 000 km
- OEM Intake clearance: 0.10 mm cold
- OEM Exhaust clearance: 0.25 mm cold
Suspension
Spec: 36 mm telescopic fork / 150 ml SAE 15W
- OEM Fork: 36 mm telescopic fork
- OEM Fork oil grade: 150 ml SAE 15W
Air filter
Battery
Spec: OEM battery: Yuasa YTX7L-BS
- Premium Yuasa YTX7L-BS or YTX7A-BS (typical 125-250cc)
