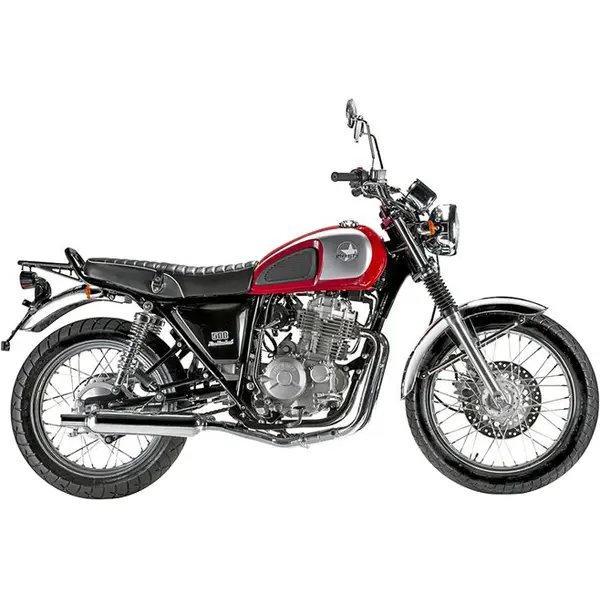

Mash FIVE HUNDRED/SCRAMBLER (2015–2016) — Specs
Identity
Manufacturer: Mash
Model: FIVE HUNDRED/SCRAMBLER
Category: Scrambler
Type: Motorcycle
Years: 2015 → 2016
Engine
Displacement (cc): 397
Cylinders: 1
Power (hp): 27
Power (kW): 20
Torque (Nm): 33
Dimensions
Overall length: 2080 mm
Overall width: 770 mm
Overall height: 1080 mm
Wheelbase: 1430 mm
Ground clearance: 165 mm
Weight (kg): 160
Seat height (mm): 780
Tank (L): 13
Tires
Front pressure (bar): 1.8
Rear pressure (bar): 2
Drivetrain
Drive chain: 520 chain
Ignition
Spark plug: NGK DPR8Z
Plug gap: 0.6-0.7 mm
Fluids & Filters
Engine oil: SAE15W-40, API SE
Engine oil (with filter, L): 2.1
Oil filter: OEM oil filter
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~325 km on a full tank (13.0 L)
Service
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Valve clearance — intake cold 0.07-0.10 mm, exhaust cold 0.08-0.12 mm. Engine oil: oil grade SAE15W-40, API SE, 2.1 L with filter change. Spark plug: NGK DPR8Z (gap 0.6-0.7 mm). Brake fluid: DOT 4. Chain: chain. Tire pressure: front 1.8 bar, rear 2 bar (cold). Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE15W-40, API SE, 2.1 L (with filter)
- OEM OEM recommended engine oil (SAE 15W-40)
- Premium Motul 7100
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spark plug
Spec: NGK DPR8Z, gap 0.6-0.7 mm
- OEM NGK DPR8Z
- Premium NGK DPR8ZIX
Front brake pads
Rear brake pads
Front tire
Spec: 1.8 bar
Rear tire
Spec: 2.0 bar
Brake fluid
Spec: DOT 4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
- OEM Intake clearance: cold 0.07-0.10 mm
- OEM Exhaust clearance: cold 0.08-0.12 mm
Suspension
Spec: 35 mm telescopic fork
- OEM Fork: 35 mm telescopic fork
Air filter
Drive chain
Battery
- Premium Yuasa YTX9-BS or YTZ7S (typical 250-500cc)
