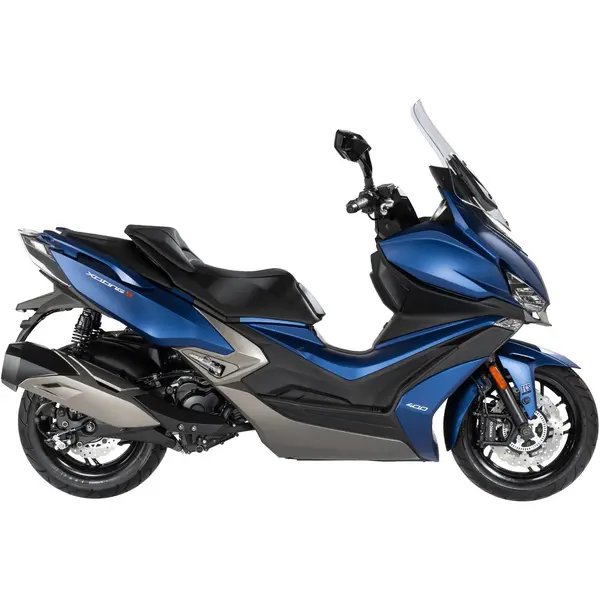

Kymco XCITING S/VS 400i (Euro 5) (2022) — Specs
Identity
Manufacturer: Kymco
Model: XCITING S/VS 400i (Euro 5)
Category: Scooter
Type: Scooter
Years: 2022 →
Engine
Displacement (cc): 400
Cylinders: 1
Power (hp): 34
Power (kW): 25
Torque (Nm): 38
Dimensions
Overall length: 1900 mm
Overall width: 730 mm
Overall height: 1170 mm
Wheelbase: 1335 mm
Ground clearance: 125 mm
Weight (kg): 213
Seat height (mm): 810
Tank (L): 12.5
Tires
Front tire: 120/70-15
Rear tire: 160/60-15
Front pressure (bar): 2
Rear pressure (bar): 2.3
Ignition
Spark plug: NGK CR7E
Plug gap: 0.7-0.8 mm
Fluids & Filters
Engine oil: SAE10W-40
Engine oil (with filter, L): 1.3
Oil filter: Hiflofiltro HF147
Air filter: OEM air filter
Coolant (L): 1.7
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~277 km on a full tank (12.5 L)
Service
Battery: OEM battery specification
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 18000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 18,000 km. Valve clearance — intake cold 0.10 mm, exhaust cold 0.10 mm. Engine oil: oil grade SAE10W-40, 1.3 L with filter change. Spark plug: NGK CR7E (gap 0.7-0.8 mm). Brake fluid: DOT 4. Coolant capacity: 1.7 L. Tire pressure: front 2 bar, rear 2.3 bar (cold). Tire size: front 120/70-15, rear 160/60-15. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, 1.3 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF147
- Premium Hiflofiltro HF147
- Premium K&N KN-147
Air filter
Spark plug
Spec: NGK CR7E, gap 0.7-0.8 mm
- OEM NGK CR7E
- Premium NGK CR7EIX
- Standard NGK CR7E
Front brake pads
Spec: EBC SFA235
- Premium EBC SFA235
Rear brake pads
Spec: EBC SFA235
- Premium EBC SFA235
Front tire
Spec: 120/70-15, 2.0 bar
- OEM OEM 120/70-15
Rear tire
Spec: 160/60-15, 2.3 bar
- OEM OEM 160/60-15
Battery
- Premium Yuasa YTX9-BS or YTZ7S (typical 250-500cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.70 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 18 000 km
- OEM Intake clearance: cold 0.10 mm
- OEM Exhaust clearance: cold 0.10 mm
