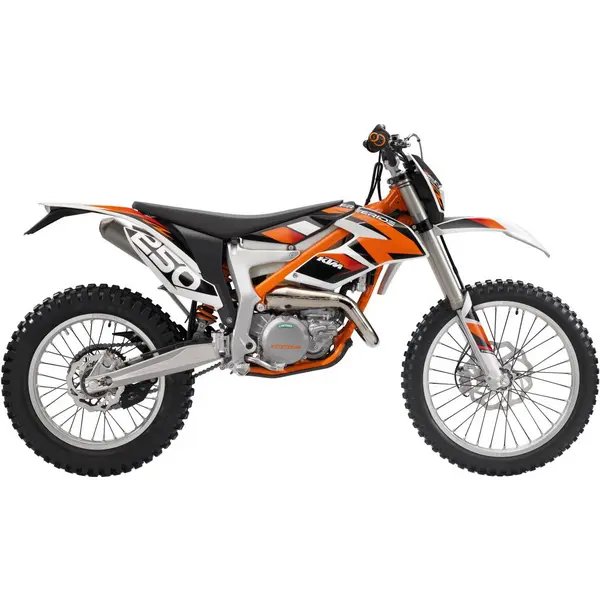

KTM FREERIDE 250 R (2014) — Specs
Identity
Manufacturer: KTM
Model: FREERIDE 250 R
Category: Off-Road Bike
Type: Off-Road Bike
Years: 2014 → 2014
Engine
Displacement (cc): 249
Cylinders: 1
Power (hp): 7
Power (kW): 5
Torque (Nm): 24
Dimensions
Overall length: 2122 mm
Overall width: 800 mm
Overall height: 1280 mm
Wheelbase: 1418 mm
Ground clearance: 320 mm
Weight (kg): 98
Seat height (mm): 915
Tank (L): 7
Tires
Front pressure (bar): 1.5
Rear pressure (bar): 1.5
Drivetrain
Sprockets (front / rear): 14 / 46
Ignition
Spark plug: NGK BR7ES
Plug gap: 0.6 mm
Fluids & Filters
Engine oil: JASO T903
Oil filter: Hiflofiltro HF652
Air filter: OEM air filter
Coolant (L): 0.9
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~233 km on a full tank (7.0 L)
Service
Battery: OEM battery specification
Service interval (km): 3000
Service interval (months): 12
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 3,000 km or 12 months, whichever comes first. Engine oil: oil grade JASO T903. Spark plug: NGK BR7ES (gap 0.6 mm). Brake fluid: DOT 4. Coolant capacity: 0.9 L. Chain: chain 5/8 X 1/4, sprockets 14/46 teeth. Tire pressure: front 1.5 bar, rear 1.5 bar (cold). Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: JASO T903
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF652
- Premium Hiflofiltro HF652
- Premium K&N KN-652
Air filter
Spark plug
Spec: NGK BR7ES, gap 0.6 mm
- OEM NGK BR7ES
- Premium NGK BR7ESIX
- Standard NGK BR7ES
Front brake pads
Rear brake pads
Drive chain
Spec: chain 5/8 X 1/4 | Sprockets 14/46 teeth / chain 5/8 X 1/4
- OEM OEM chain (pitch 520 (or 428 for some commuter 250s))
Front tire
Spec: 1.5 bar
Rear tire
Spec: 1.5 bar
Battery
- Premium Yuasa YTX7L-BS or YTX7A-BS (typical 125-250cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 0.90 L coolant capacity
Service interval
Spec: 3 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
- OEM 2-stroke engine — no valve check needed
Suspension
Spec: 390 ml SAE 4
- OEM Fork oil grade: 390 ml SAE 4
