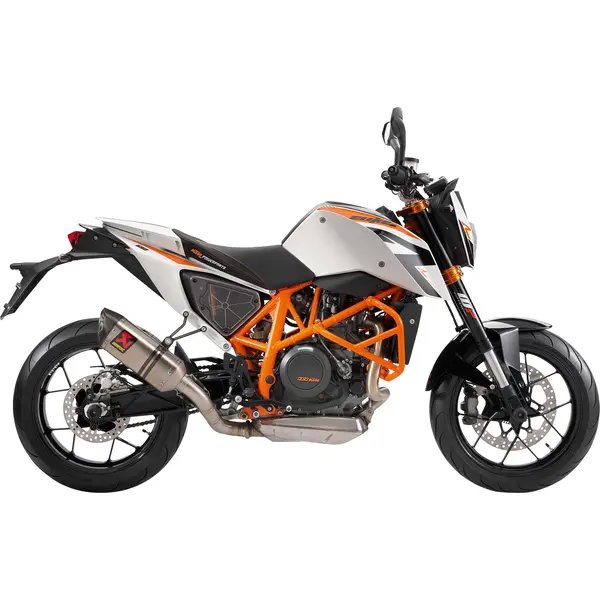

KTM 690 DUKE R (2013–2015) — Specs
Identity
Manufacturer: KTM
Model: 690 DUKE R
Category: Naked
Type: Motorcycle
Years: 2013 → 2015
Engine
Displacement (cc): 690
Cylinders: 1
Power (hp): 70
Power (kW): 52
Torque (Nm): 74
Dimensions
Overall length: 2138 mm
Overall width: 805 mm
Overall height: 1265 mm
Wheelbase: 1466 mm
Ground clearance: 175 mm
Weight (kg): 160
Seat height (mm): 865
Tank (L): 14
Tires
Front tire: 120/70 ZR17
Rear tire: 160/60 ZR17
Front pressure (bar): 2
Rear pressure (bar): 2
Drivetrain
Drive chain: 5/8 X 1/4"" X-ring
Sprockets (front / rear): 16 / 40
Ignition
Spark plug: NGK LKAR8BI9 inner
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-60, 10W-50
Engine oil (with filter, L): 1.7
Oil filter: Hiflofiltro HF652
Air filter: Hiflofiltro HFA6501
Coolant (L): 1.2
Brake fluid: DOT 5.1
Fuel consumption
Estimated: 4.0 L/100 km
Estimated range: ~350 km on a full tank (14.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX12-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Valve clearance — intake cold 0.07-0.13 mm, exhaust cold 0.07-0.13 mm. Engine oil: oil grade SAE10W-60, 10W-50, 1.7 L with filter change. Spark plug: NGK LKAR8BI9 inner (gap 0.9 mm). Brake fluid: DOT 5.1. Coolant capacity: 1.2 L. Chain: 5/8 X 1/4"" X-ring, sprockets 16/40 teeth. Tire pressure: front 2 bar, rear 2 bar (cold). Tire size: front 120/70 ZR17, rear 160/60 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-50, 1.7 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-60)
- Premium Motul 7100
- Premium Motul 5100
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T
- Standard Elf Moto 4 Tech
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF652
- Premium Hiflofiltro HF652
- Premium K&N KN-652
Air filter
Spec: Hiflofiltro HFA6501
- Standard Hiflofiltro HFA6501
Spark plug
Spec: NGK LMAR8AI-9, gap 0.7-0.8 mm
- OEM NGK LMAR8AI-9
- Premium NGK LMAR8AI-9
- Standard NGK LMAR8AI-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA181HH)
- Premium EBC FA181HH
- Standard EBC FA181 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA213HH)
- Premium EBC FA213HH
- Standard EBC FA213 (organic)
Drive chain
Spec: 5/8 X 1/4"" X-ring | Sprockets 16/40 teeth / 5/8 X 1/4"" X-ring
Front tire
Spec: 120/70 ZR17, 2.0 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 160/60 ZR17, 2.0 bar
- OEM OEM 160/60 ZR17
Battery
Spec: OEM battery: Yuasa YTX12-BS
- OEM OEM battery: Yuasa YTZ7S
- Premium Yuasa YTZ7S
Brake fluid
Spec: DOT 5.1
- Standard TotalEnergies HBF4
Coolant
Spec: 1.20 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
- OEM Intake clearance: cold 0.07-0.13 mm
- OEM Exhaust clearance: cold 0.07-0.13 mm
Suspension
Spec: USD fork / 480 ml SAE 4
- OEM Fork: USD fork
- OEM Fork oil grade: 480 ml SAE 4
