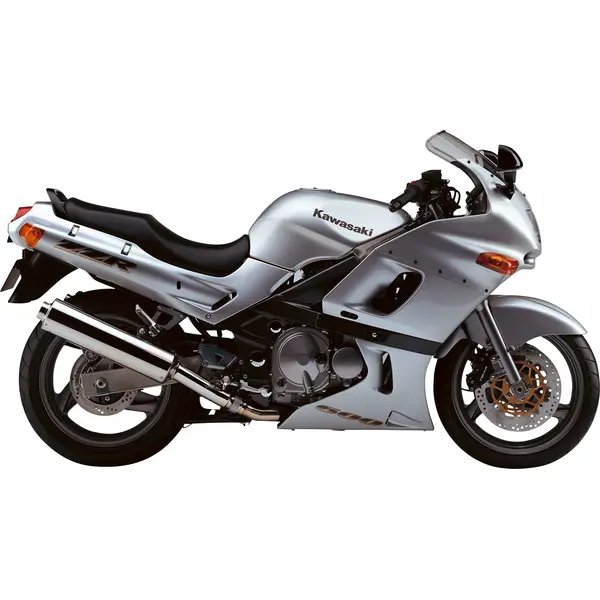

Kawasaki ZZ-R 600 (1993–1995) — Specs

Identity

Manufacturer: Kawasaki

Model: ZZ-R 600

Category: Motorcycle

Type: Motorcycle

Years: 1993 → 1995

Engine

Displacement (cc): 599

Cylinders: 4

Power (hp): 98

Power (kW): 72

Torque (Nm): 65

Dimensions

Overall length: 2150 mm

Overall width: 810 mm

Overall height: 1180 mm

Wheelbase: 1450 mm

Ground clearance: 155 mm

Weight (kg): 195

Tank (L): 18

Tires

Front tire: 120/60 ZR17

Rear tire: 160/60 ZR17

Front pressure (bar): 2.2

Rear pressure (bar): 2.6

Drivetrain

Drive chain: 520 chain, 112 links

Sprockets (front / rear): 16 / 48

Ignition

Spark plug: NGK CR9E

Plug gap: 0.8 mm

Fluids & Filters

Engine oil: SAE10W-40, API SG

Engine oil (with filter, L): 3.5

Engine oil (without filter, L): 3.2

Oil filter: OEM oil filter

Air filter: OEM air filter

Coolant (L): 2.5

Brake fluid: DOT 4

Fuel consumption

Estimated range: ~375 km on a full tank (18.0 L)

Service

Battery: OEM battery specification

Service interval (km): 6000

Service interval (months): 12

Valve check (km): 24000

Parts and consumables for this motorcycle

Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.

Service notes

Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.15-0.24 mm, exhaust cold 0.22-0.30 mm. Engine oil: oil grade SAE10W-40, API SG, 3.5 L with filter change, 3.2 L without filter change. Spark plug: NGK CR9E (gap 0.8 mm). Brake fluid: DOT 4. Coolant capacity: 2.5 L. Chain: 112 links, sprockets 16/48 teeth. Tire pressure: front 2.2 bar, rear 2.6 bar (cold). Tire size: front 120/60 ZR17, rear 160/60 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.

OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.

Engine oil

Spec: SAE10W-40, API SG, 3.5 L (with filter), 3.2 L (without filter)

OEM OEM recommended engine oil (SAE 10W-40)
Premium Motul 7100 4T (100% Synthetic, Ester)
Premium Motul 5100 4T Technosynthese (Semi-Synthetic)

Which Motul for this bike?

	Motul 7100 4T ✓	Motul 5100 4T
Product	Motul 7100 4T — 100% fully synthetic	Motul 5100 4T — semi-synthetic
Best for	Sport, Naked, Adventure (600cc+), track	Standard, Cruiser, Scooter, daily use
RPM protection	Excellent — ester base, stable under load	Good — for normal riding conditions

Standard Repsol Moto Racing 4T (Synthetic)
Standard Elf Moto 4 Tech (Semi-Synthetic)

Fully Synthetic vs Semi-Synthetic

	Fully Synthetic	Semi-Synthetic
Base oil	100% chemical synthesis (ester or PAO)	Mineral oil + synthetic additives
Heat resistance	Excellent — stable at extreme heat & RPM	Good — suitable for normal temperatures
Cold start	Better — reaches engine faster when cold	Good — adequate for normal climates
Change interval	Longer (up to 10,000 km)	Shorter (5,000–7,000 km typical)
Price	Higher	Lower

Oil filter

Air filter

Spark plug

Spec: NGK CR9E, gap 0.8 mm

OEM NGK CR9E
Premium NGK CR9EIX
Standard NGK CR9E

Front brake pads

Spec: EBC FA134

Premium EBC FA134

Rear brake pads

Spec: EBC FA134

Premium EBC FA134

Drive chain

Spec: 112 links | Sprockets 16/48 teeth / 112 links

Front tire

Spec: 120/60 ZR17, 2.2 bar

OEM OEM 120/60 ZR17

Rear tire

Spec: 160/60 ZR17, 2.6 bar

OEM OEM 160/60 ZR17

Battery

Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)

Brake fluid

Spec: DOT 4

Standard TotalEnergies HBF4

Coolant

Spec: 2.50 L coolant capacity

Service interval

Spec: 6 000 km / 12 months

OEM Engine oil + oil filter change
OEM Air filter inspection
OEM Spark plug check
OEM Brake fluid replacement: every 2 years

Valve check

Spec: 24 000 km

OEM Intake clearance: cold 0.15-0.24 mm
OEM Exhaust clearance: cold 0.22-0.30 mm

Suspension

Spec: 41 mm telescopic fork / 429 ml SAE 10W-20

OEM Fork: 41 mm telescopic fork
OEM Fork oil grade: 429 ml SAE 10W-20
