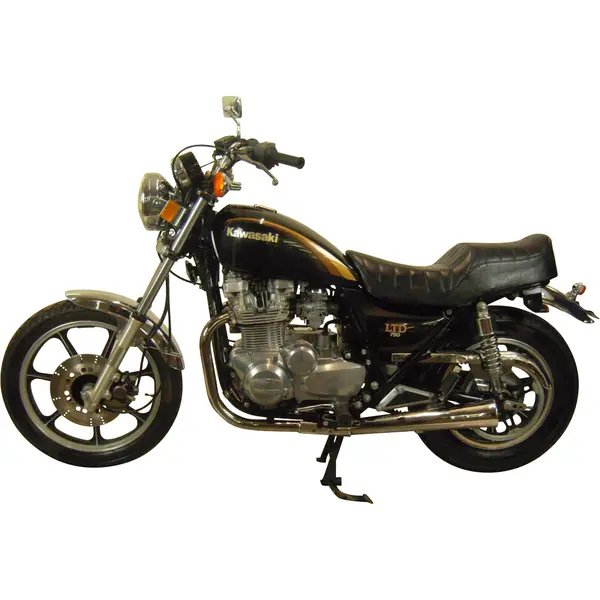

Kawasaki Z 750 LTD BD (toothed belt) (1983–1984) — Specs
Identity
Manufacturer: Kawasaki
Model: Z 750 LTD BD (toothed belt)
Category: Motorcycle
Type: Motorcycle
Years: 1983 → 1984
Engine
Displacement (cc): 745
Cylinders: 2
Power (hp): 49
Power (kW): 36
Torque (Nm): 78
Dimensions
Overall length: 2180 mm
Overall width: 830 mm
Overall height: 1200 mm
Wheelbase: 1480 mm
Ground clearance: 150 mm
Weight (kg): 222
Tank (L): 10.5
Tires
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Front pressure (bar): 2
Rear pressure (bar): 2.3
Drivetrain
Final drive: Toothed belt
Ignition
Spark plug: NGK BPR6ES
Fluids & Filters
Engine oil: SAE10W-40
Engine oil (with filter, L): 3.5
Engine oil (without filter, L): 3.2
Oil filter: Hiflofiltro HF401
Air filter: Hiflofiltro HFA2703
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~218 km on a full tank (10.5 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.05-0.10 mm, exhaust cold 0.05-0.10 mm. Engine oil: oil grade SAE10W-40, 3.5 L with filter change, 3.2 L without filter change. Spark plug: NGK BPR6ES. Brake fluid: DOT 4. Chain: toothed belt. Tire pressure: front 2 bar, rear 2.3 bar (cold). Tire size: front 120/70 ZR17, rear 180/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, 3.5 L (with filter), 3.2 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF401
- Premium Hiflofiltro HF401
- Premium K&N KN-401
Air filter
Spec: Hiflofiltro HFA2703
- Standard Hiflofiltro HFA2703
Spark plug
Spec: NGK BPR6ES
- OEM NGK BPR6ES
- Premium NGK BPR6EIX
- Standard NGK BPR6ES
Front brake pads
Spec: EBC FA068HH
- Premium EBC FA068HH
Rear brake pads
Spec: EBC FA068HH
- Premium EBC FA068HH
Front tire
Spec: 120/70 ZR17, 2.0 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 180/55 ZR17, 2.3 bar
- OEM OEM rear: 180/55 ZR17
Battery
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.05-0.10 mm
- OEM Exhaust clearance: cold 0.05-0.10 mm
Suspension
Spec: 36 mm telescopic fork / 270 ml SAE 10W
- OEM Fork: 36 mm telescopic fork
- OEM Fork oil grade: 270 ml SAE 10W
Drive chain
