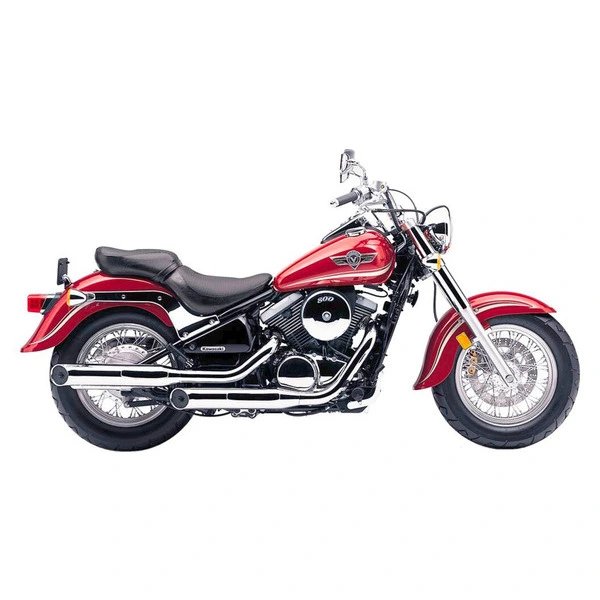

Kawasaki VN 800 CLASSIC (1996–2005) — Specs
Identity
Manufacturer: Kawasaki
Model: VN 800 CLASSIC
Category: Motorcycle
Type: Motorcycle
Years: 1996 → 2005
Engine
Displacement (cc): 805
Cylinders: 2
Power (hp): 55
Power (kW): 40
Torque (Nm): 60
Dimensions
Overall length: 2180 mm
Overall width: 830 mm
Overall height: 1200 mm
Wheelbase: 1480 mm
Ground clearance: 150 mm
Weight (kg): 256
Seat height (mm): 720
Tank (L): 15
Tires
Front tire: 130/90-16
Rear tire: 140/90-15
Front pressure (bar): 2
Rear pressure (bar): 2.5
Drivetrain
Drive chain: 525 chain, 112 links
Sprockets (front / rear): 17 / 42
Ignition
Spark plug: NGK CR7E
Plug gap: 0.8 mm
Fluids & Filters
Engine oil: SAE10W-40, API SG
Engine oil (with filter, L): 3.2
Engine oil (without filter, L): 3
Oil filter: Hiflofiltro HF303
Air filter: Hiflofiltro HFA2801
Coolant (L): 2.4
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~272 km on a full tank (15.0 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.10-0.15 mm, exhaust cold 0.20-0.25 mm. Engine oil: oil grade SAE10W-40, API SG, 3.2 L with filter change, 3 L without filter change. Spark plug: NGK CR7E (gap 0.8 mm). Brake fluid: DOT 4. Coolant capacity: 2.4 L. Chain: 112 links, sprockets 17/42 teeth. Tire pressure: front 2 bar, rear 2.5 bar (cold). Tire size: front 130/90-16, rear 140/90-15. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SG, 3.2 L (with filter), 3.0 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF303
- Premium Hiflofiltro HF303
- Premium K&N KN-303
Air filter
Spec: Hiflofiltro HFA2801
- Standard Hiflofiltro HFA2801
Spark plug
Spec: NGK CR7E, gap 0.8 mm
- OEM NGK CR7E
- Premium NGK CR7EIX
- Standard NGK CR7E
Front brake pads
Spec: EBC FA229HH
- Premium EBC FA229HH
Rear brake pads
Spec: EBC FA229HH
- Premium EBC FA229HH
Drive chain
Spec: 112 links | Sprockets 17/42 teeth / 112 links
Front tire
Spec: 130/90-16, 2.0 bar
- OEM OEM 130/90-16
Rear tire
Spec: 140/90-15, 2.5 bar
- OEM OEM 140/90-15
Battery
- Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.40 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.10-0.15 mm
- OEM Exhaust clearance: cold 0.20-0.25 mm
Suspension
Spec: 41 mm telescopic fork / 340 ml SAE 10W-20
- OEM Fork: 41 mm telescopic fork
- OEM Fork oil grade: 340 ml SAE 10W-20
