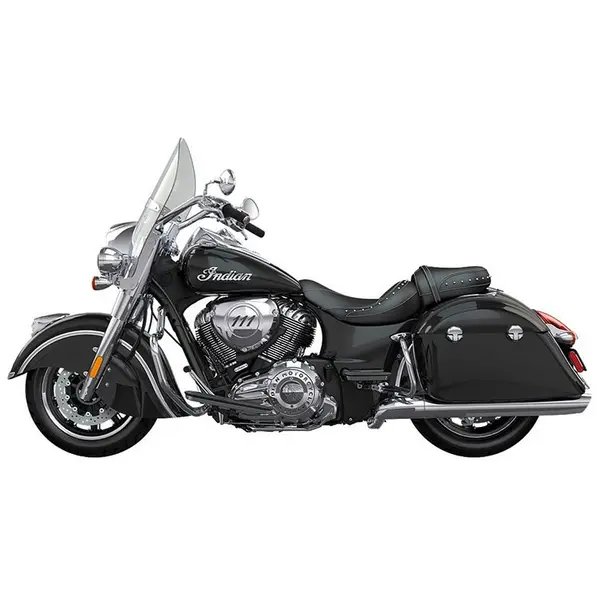

Indian SPRINGFIELD (EURO 4) (2016–2020) — Specs
Identity
Manufacturer: Indian
Model: SPRINGFIELD (EURO 4)
Category: Cruiser
Type: Motorcycle
Years: 2016 → 2020
Engine
Displacement (cc): 1811
Cylinders: 2
Power (hp): 84
Power (kW): 62
Torque (Nm): 171
Dimensions
Overall length: 2400 mm
Overall width: 940 mm
Overall height: 1140 mm
Wheelbase: 1645 mm
Ground clearance: 140 mm
Weight (kg): 388
Seat height (mm): 660
Tank (L): 20.8
Tires
Front tire: 130/90-16
Rear tire: 180/60 R16
Front pressure (bar): 3.17
Rear pressure (bar): 2.83
Drivetrain
Final drive: toothed belt (152 Z)
Sprockets (front / rear): 30 / 66
Ignition
Spark plug: NGK DCPR8E
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE20W-40, API SM
Engine oil (with filter, L): 5.2
Oil filter: Hiflofiltro HF175
Air filter: Hiflofiltro HFA1903
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~320 km on a full tank (20.8 L)
Service
Battery: YTX20HL-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade SAE20W-40, API SM, 5.2 L with filter change. Spark plug: NGK DCPR8E (gap 0.9 mm). Brake fluid: DOT 4. Chain: toothed belt (152 Z), sprockets 30/66 teeth. Tire pressure: front 3.17 bar, rear 2.83 bar (cold). Tire size: front 130/90-16, rear 180/60 R16. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE20W-40, API SM, 5.2 L (with filter)
- OEM OEM recommended engine oil (SAE 20W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF175
- Premium Hiflofiltro HF175
- Premium K&N KN-175
Air filter
Spec: Hiflofiltro HFA1903
- Standard Hiflofiltro HFA1903
Spark plug
Spec: NGK DCPR8E, gap 0.9 mm
- OEM NGK DCPR8E
- Premium NGK DCPR8EIX
- Standard NGK DCPR8E
Front brake pads
Spec: EBC FA347HH
- Premium EBC FA347HH
Rear brake pads
Spec: EBC FA347HH
- Premium EBC FA347HH
Front tire
Spec: 130/90-16, 3.17 bar
- OEM OEM 130/90-16
Rear tire
Spec: 180/60 R16, 2.83 bar
- OEM OEM 180/60 R16
Battery
- Premium Yuasa YTX20HL-BS (typical 1300cc+ cruiser/tourer)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Hydraulic lifters — no manual adjustment needed
Suspension
Spec: 46 mm telescopic fork / approx. 280 ml
- OEM Fork: 46 mm telescopic fork
- OEM Fork oil grade: approx. 280 ml
Drive chain
