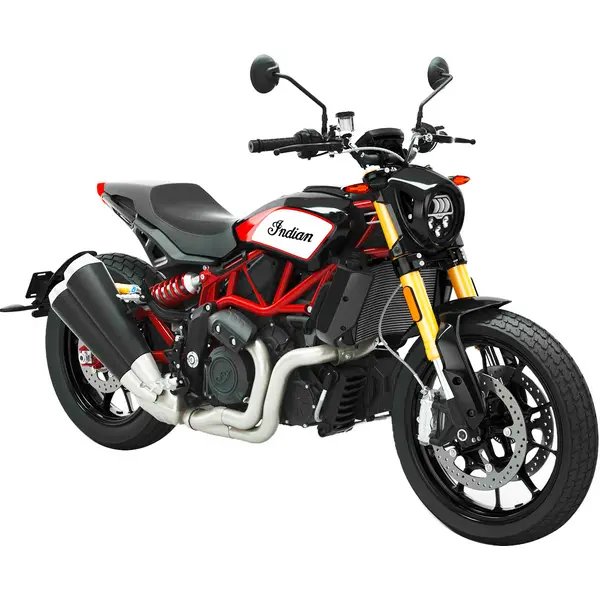

Indian FTR 1200 S/RALLY (EURO 4/5) (2019–2022) — Specs
Identity
Manufacturer: Indian
Model: FTR 1200 S/RALLY (EURO 4/5)
Category: Adventure
Type: Motorcycle
Years: 2019 → 2022
Engine
Displacement (cc): 1203
Cylinders: 2
Power (hp): 120
Power (kW): 88
Torque (Nm): 120
Dimensions
Overall length: 2230 mm
Overall width: 820 mm
Overall height: 1255 mm
Wheelbase: 1525 mm
Ground clearance: 200 mm
Weight (kg): 231
Seat height (mm): 840
Tank (L): 13
Tires
Front tire: 120/70 R17
Rear tire: 180/55 R17
Front pressure (bar): 2.5
Rear pressure (bar): 2.8
Drivetrain
Drive chain: 530 chain, 116 links
Ignition
Spark plug: NGK MR7F
Plug gap: 0.8 mm
Fluids & Filters
Engine oil: 15W-60, API SM
Engine oil (with filter, L): 3.8
Oil filter: Hiflofiltro HF198
Air filter: OEM air filter
Coolant (L): 2.2
Brake fluid: DOT 4
Fuel consumption
Estimated: 5.5 L/100 km
Estimated range: ~236 km on a full tank (13.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade 15W-60, API SM, 3.8 L with filter change. Spark plug: NGK MR7F (gap 0.8 mm). Brake fluid: DOT 4. Coolant capacity: 2.2 L. Chain: 116 links. Tire pressure: front 2.5 bar, rear 2.8 bar (cold). Tire size: front 120/70 R17, rear 180/55 R17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 15W-60, API SM, 3.8 L (with filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF198
- Premium Hiflofiltro HF198
- Premium K&N KN-198
Air filter
Spark plug
Spec: NGK MR7F, gap 0.8 mm
- OEM NGK MR7F
- Premium NGK MR7FIX
- Standard NGK MR7F
Front brake pads
Spec: EBC FA630HH
- Premium EBC FA630HH
Rear brake pads
Spec: EBC FA630HH
- Premium EBC FA630HH
Drive chain
Spec: 116 links | 116 links
Front tire
Spec: 120/70 R17, 2.5 bar
- OEM OEM 120/70 R17
Rear tire
Spec: 180/55 R17, 2.8 bar
- OEM OEM 180/55 R17
Battery
- Premium Yuasa YTZ14S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.20 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 43 USD fork
- OEM Fork: 43 USD fork
