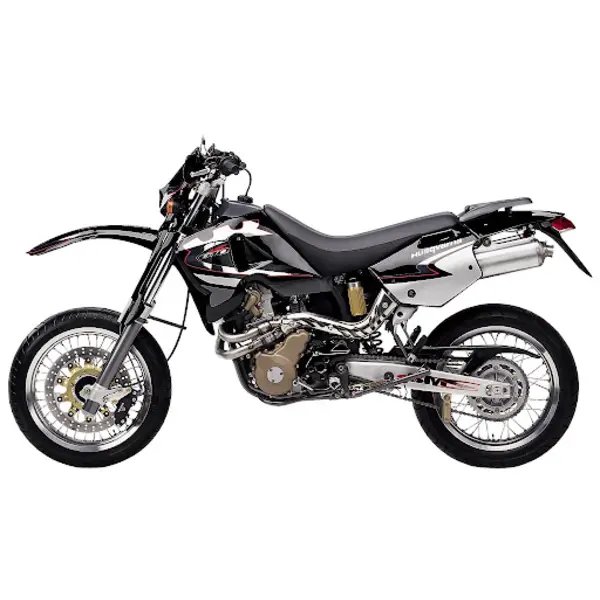

Husqvarna SM 610 E/S (E-START) (1998–2004) — Specs
Identity
Manufacturer: Husqvarna
Model: SM 610 E/S (E-START)
Category: Motorcycle
Type: Motorcycle
Years: 1998 → 2004
Engine
Displacement (cc): 576
Cylinders: 1
Power (hp): 46
Power (kW): 34
Torque (Nm): 56
Dimensions
Overall length: 2150 mm
Overall width: 810 mm
Overall height: 1180 mm
Wheelbase: 1450 mm
Ground clearance: 155 mm
Weight (kg): 150
Seat height (mm): 860
Tank (L): 9.1
Tires
Front pressure (bar): 1.8
Rear pressure (bar): 2
Drivetrain
Drive chain: 520 chain, 112 links
Sprockets (front / rear): 16 / 45
Ignition
Spark plug: NGK C7E
Plug gap: 0.6-0.7 mm
Fluids & Filters
Engine oil: 10W-40, API SL
Engine oil (with filter, L): 2
Oil filter: Hiflofiltro HF154
Air filter: Hiflofiltro HFA6301
Coolant (L): 1.35
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~189 km on a full tank (9.1 L)
Service
Battery: OEM battery specification
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Valve clearance — intake cold 0.05 mm, exhaust cold 0.05 mm. Engine oil: oil grade 10W-40, API SL, 2 L with filter change. Spark plug: NGK C7E (gap 0.6-0.7 mm). Brake fluid: DOT 4. Coolant capacity: 1.35 L. Chain: 112 links, sprockets 16/45 teeth. Tire pressure: front 1.8 bar, rear 2 bar (cold). Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 10W-40, API SL, 2.0 L (with filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF154
- Premium Hiflofiltro HF154
- Premium K&N KN-154
Air filter
Spec: Hiflofiltro HFA6301
- Standard Hiflofiltro HFA6301
Spark plug
Spec: NGK C7E, gap 0.6-0.7 mm
- Premium NGK CR7EIX
Front brake pads
Rear brake pads
Drive chain
Spec: 112 links | Sprockets 16/45 teeth / 112 links
Front tire
Spec: 1.8 bar
Rear tire
Spec: 2.0 bar
Battery
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.35 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
- OEM Intake clearance: cold 0.05 mm
- OEM Exhaust clearance: cold 0.05 mm
Suspension
Spec: 45 mm USD fork / 140 mm SAE 7.5W
- OEM Fork: 45 mm USD fork
- OEM Fork oil grade: 140 mm SAE 7.5W
