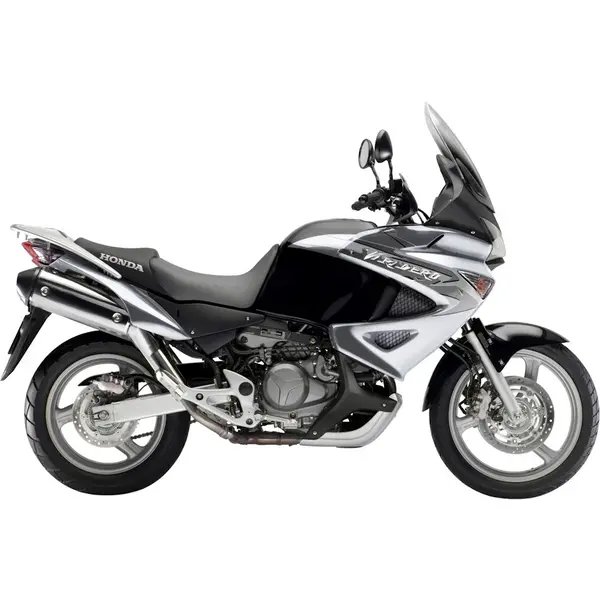

Honda XL 1000 V VARADERO (2007–2011) — Specs

Identity

Manufacturer: Honda

Model: XL 1000 V VARADERO

Category: Motorcycle

Type: Motorcycle

Years: 2007 → 2011

Engine

Displacement (cc): 996

Cylinders: 2

Power (hp): 94

Power (kW): 69

Torque (Nm): 98

Dimensions

Overall length: 2240 mm

Overall width: 870 mm

Overall height: 1280 mm

Wheelbase: 1510 mm

Ground clearance: 150 mm

Weight (kg): 265

Seat height (mm): 845

Tank (L): 25

Tires

Front tire: 110/80 R19

Rear tire: 150/70 R17

Front pressure (bar): 2.5

Rear pressure (bar): 2.5

Drivetrain

Drive chain: 525 chain, 112 links

Sprockets (front / rear): 16 / 47

Ignition

Spark plug: NGK IJR8B9

Plug gap: 0.9 mm

Fluids & Filters

Engine oil: SAE10W-40

Engine oil (with filter, L): 3.6

Engine oil (without filter, L): 3.4

Oil filter: OEM oil filter

Air filter: Hiflofiltro HFA1112

Coolant (L): 3.3

Brake fluid: DOT 4

Fuel consumption

Estimated range: ~454 km on a full tank (25.0 L)

Service

Battery: OEM battery specification

Service interval (km): 10000

Service interval (months): 12

Valve check (km): 24000

Parts and consumables for this motorcycle

Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.

Service notes

Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.13-0.19 mm, exhaust cold 0.28-0.34 mm. Engine oil: oil grade SAE10W-40, 3.6 L with filter change, 3.4 L without filter change. Spark plug: NGK IJR8B9 (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 3.3 L. Chain: 112 links, sprockets 16/47 teeth. Tire pressure: front 2.5 bar, rear 2.5 bar (cold). Tire size: front 110/80 R19, rear 150/70 R17. Always confirm critical values with the workshop manual or an authorised dealer.

OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.

Engine oil

Spec: SAE10W-40, 3.6 L (with filter), 3.4 L (without filter)

OEM OEM recommended engine oil (SAE 10W-40)
Premium Motul 7100 4T (100% Synthetic, Ester)
Premium Motul 5100 4T Technosynthese (Semi-Synthetic)

Which Motul for this bike?

	Motul 7100 4T ✓	Motul 5100 4T
Product	Motul 7100 4T — 100% fully synthetic	Motul 5100 4T — semi-synthetic
Best for	Sport, Naked, Adventure (600cc+), track	Standard, Cruiser, Scooter, daily use
RPM protection	Excellent — ester base, stable under load	Good — for normal riding conditions

Standard Repsol Moto Racing 4T (Synthetic)
Standard Elf Moto 4 Tech (Semi-Synthetic)

Fully Synthetic vs Semi-Synthetic

	Fully Synthetic	Semi-Synthetic
Base oil	100% chemical synthesis (ester or PAO)	Mineral oil + synthetic additives
Heat resistance	Excellent — stable at extreme heat & RPM	Good — suitable for normal temperatures
Cold start	Better — reaches engine faster when cold	Good — adequate for normal climates
Change interval	Longer (up to 10,000 km)	Shorter (5,000–7,000 km typical)
Price	Higher	Lower

Oil filter

Air filter

Spec: Hiflofiltro HFA1112

Standard Hiflofiltro HFA1112

Spark plug

Spec: NGK IJR8B9, gap 0.9 mm

OEM NGK IJR8B9
Premium NGK IJR8B9IX
Standard NGK IJR8B9

Front brake pads

Spec: EBC FA388HH

Premium EBC FA388HH

Rear brake pads

Spec: EBC FA388HH

Premium EBC FA388HH

Drive chain

Spec: 112 links | Sprockets 16/47 teeth / 112 links

Front tire

Spec: 110/80 R19, 2.5 bar

OEM OEM 110/80 R19

Rear tire

Spec: 150/70 R17, 2.5 bar

OEM OEM 150/70 R17

Battery

Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)

Brake fluid

Spec: DOT 4

Standard TotalEnergies HBF4

Coolant

Spec: 3.30 L coolant capacity

Service interval

Spec: 10 000 km / 12 months

OEM Engine oil + oil filter change
OEM Air filter inspection
OEM Spark plug check
OEM Brake fluid replacement: every 2 years

Valve check

Spec: 24 000 km

OEM Intake clearance: cold 0.13-0.19 mm
OEM Exhaust clearance: cold 0.28-0.34 mm

Suspension

Spec: 43 mm telescopic fork / L.511/R.538ML 10W

OEM Fork: 43 mm telescopic fork
OEM Fork oil grade: L.511/R.538ML 10W
