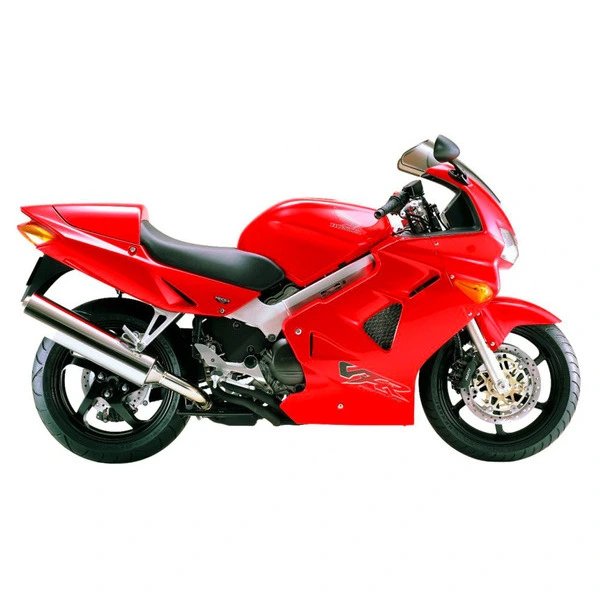

Honda VFR 800 FI (1998–2001) — Specs
Identity
Manufacturer: Honda
Model: VFR 800 FI
Category: Motorcycle
Type: Motorcycle
Years: 1998 → 2001
Engine
Displacement (cc): 781
Cylinders: 4
Power (hp): 106
Power (kW): 78
Torque (Nm): 75
Dimensions
Overall length: 2180 mm
Overall width: 830 mm
Overall height: 1200 mm
Wheelbase: 1480 mm
Ground clearance: 150 mm
Weight (kg): 234
Seat height (mm): 820
Tank (L): 21
Tires
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 525 chain, 108 links
Sprockets (front / rear): 17 / 43
Ignition
Spark plug: NGK CR9EH-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-40, API SE-SG
Engine oil (with filter, L): 3.1
Engine oil (without filter, L): 2.9
Oil filter: Hiflofiltro HF303
Air filter: Hiflofiltro HFA1801
Coolant (L): 3.2
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~437 km on a full tank (21.0 L)
Service
Battery: YTZ12S
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.16 mm, exhaust cold 0.30 mm. Engine oil: oil grade SAE10W-40, API SE-SG, 3.1 L with filter change, 2.9 L without filter change. Spark plug: NGK CR9EH-9 (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 3.2 L. Chain: 108 links, sprockets 17/43 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 180/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SE-SG, 3.1 L (with filter), 2.9 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF303
- Premium Hiflofiltro HF303
- Premium K&N KN-303
Air filter
Spec: Hiflofiltro HFA1801
- Standard Hiflofiltro HFA1801
Spark plug
Spec: NGK CR9EH-9, gap 0.9 mm
- OEM NGK CR9EH-9
- Premium NGK CR9EHIX-9
- Standard NGK CR9EH-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA388HH)
- Premium EBC FA388HH
- Standard EBC FA388 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA174HH)
- Premium EBC FA174HH
- Standard EBC FA174 (organic)
Drive chain
Spec: 108 links | Sprockets 17/43 teeth / 108 links
Front tire
Spec: 120/70 ZR17, 2.5 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 180/55 ZR17, 2.9 bar
- OEM OEM rear: 180/55 ZR17
Battery
Spec: OEM battery: Yuasa YTZ12S
- Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 3.20 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.16 mm
- OEM Exhaust clearance: cold 0.30 mm
Suspension
Spec: 41 mm telescopic fork / 457 ml SAE 10W
- OEM Fork: 41 mm telescopic fork
- OEM Fork oil grade: 457 ml SAE 10W
