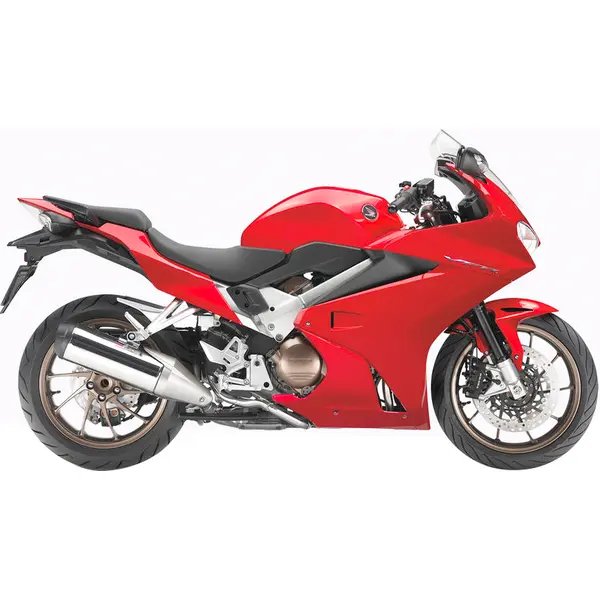

Honda VFR 800 F (EURO 4) (2017–2020) — Specs
Identity
Manufacturer: Honda
Model: VFR 800 F (EURO 4)
Category: Motorcycle
Type: Motorcycle
Years: 2017 → 2020
Engine
Displacement (cc): 782
Cylinders: 4
Power (hp): 106
Power (kW): 78
Torque (Nm): 75
Dimensions
Overall length: 2160 mm
Overall width: 745 mm
Overall height: 1190 mm
Wheelbase: 1460 mm
Ground clearance: 135 mm
Weight (kg): 243
Seat height (mm): 789
Tank (L): 21.2
Tires
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 525 chain, 110 links
Sprockets (front / rear): 16 / 43
Ignition
Spark plug: NGK IMR9D-9H
Plug gap: 0.8-0.9 mm
Fluids & Filters
Engine oil: API SG
Engine oil (with filter, L): 3.1
Engine oil (without filter, L): 2.9
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA1715
Coolant (L): 3.1
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~441 km on a full tank (21.2 L)
Service
Battery: YTZ12S
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake VTEC, exhaust VTEC. Engine oil: oil grade API SG, 3.1 L with filter change, 2.9 L without filter change. Spark plug: NGK IMR9D-9H (gap 0.8-0.9 mm). Brake fluid: DOT 4. Coolant capacity: 3.1 L. Chain: 110 links, sprockets 16/43 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 180/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: API SG, 3.1 L (with filter), 2.9 L (without filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA1715
- Standard Hiflofiltro HFA1715
Spark plug
Spec: NGK IMR9D-9H, gap 0.8-0.9 mm
- OEM NGK IMR9D-9
- Premium NGK IMR9D-9
- Standard NGK IMR9D-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA388HH)
- Premium EBC FA388HH
- Standard EBC FA388 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA174HH)
- Premium EBC FA174HH
- Standard EBC FA174 (organic)
Drive chain
Spec: 110 links | Sprockets 16/43 teeth / 110 links
Front tire
Spec: 120/70 ZR17, 2.5 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 180/55 ZR17, 2.9 bar
- OEM OEM rear: 180/55 ZR17
Battery
Spec: OEM battery: Yuasa YTZ12S
- Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 3.10 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: VTEC
- OEM Exhaust clearance: VTEC
Suspension
Spec: 43 mm telescopic fork
- OEM Fork: 43 mm telescopic fork
