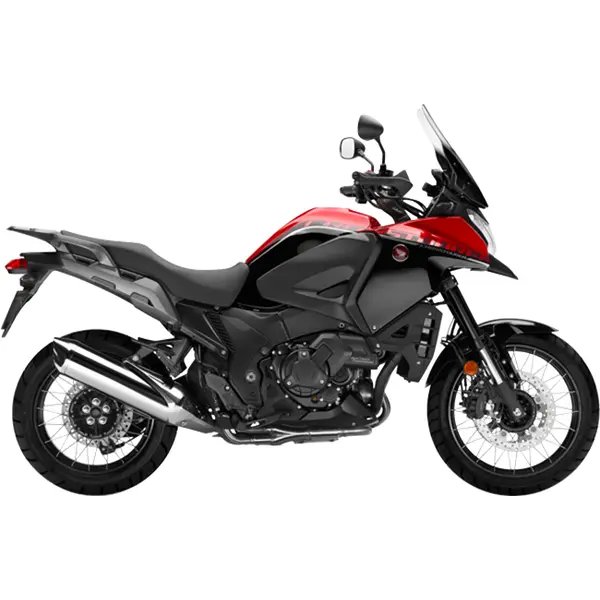

Honda CROSSTOURER (VFR 1200 X/XD) EURO 4 (2016–2020) — Specs

Identity

Manufacturer: Honda

Model: CROSSTOURER (VFR 1200 X/XD) EURO 4

Category: Touring

Type: Motorcycle

Years: 2016 → 2020

Engine

Displacement (cc): 1237

Cylinders: 4

Power (hp): 129

Power (kW): 95

Torque (Nm): 129

Dimensions

Overall length: 2160 mm

Overall width: 745 mm

Overall height: 1190 mm

Wheelbase: 1460 mm

Ground clearance: 135 mm

Weight (kg): 277

Seat height (mm): 850

Tank (L): 21.5

Tires

Front tire: 120/70 ZR17

Rear tire: 190/55 ZR17

Front pressure (bar): 2.5

Rear pressure (bar): 2.9

Drivetrain

Final drive: Shaft drive

Ignition

Spark plug: NGK IMR8E-9HES

Fluids & Filters

Engine oil: SAE10W-30, API SG

Engine oil (with filter, L): 3.3

Oil filter: Hiflofiltro HF204

Air filter: Hiflofiltro HFA1930

Coolant (L): 3.56

Brake fluid: DOT 4

Fuel consumption

Estimated: 6.5 L/100 km

Estimated range: ~330 km on a full tank (21.5 L)

Note: real-world ±15-30% depending on riding style

Service

Battery: YTZ12S

Service interval (km): 6000

Service interval (months): 12

Valve check (km): 24000

Parts and consumables for this motorcycle

Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.

Service notes

Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.13-0.19 mm, exhaust cold 0.28-0.32 mm. Engine oil: oil grade SAE10W-30, API SG, 3.3 L with filter change. Spark plug: NGK IMR8E-9HES. Brake fluid: DOT 4. Coolant capacity: 3.56 L. Drive: shaft drive. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 190/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.

OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.

Engine oil

Spec: SAE10W-30, API SG, 3.3 L (with filter)

OEM OEM recommended engine oil (SAE 10W-30)
Premium Motul 7100 4T (100% Synthetic, Ester)
Premium Motul 5100 4T Technosynthese (Semi-Synthetic)

Which Motul for this bike?

	Motul 7100 4T ✓	Motul 5100 4T
Product	Motul 7100 4T — 100% fully synthetic	Motul 5100 4T — semi-synthetic
Best for	Sport, Naked, Adventure (600cc+), track	Standard, Cruiser, Scooter, daily use
RPM protection	Excellent — ester base, stable under load	Good — for normal riding conditions

Standard Repsol Moto Racing 4T (Synthetic)
Standard Elf Moto 4 Tech (Semi-Synthetic)

Fully Synthetic vs Semi-Synthetic

	Fully Synthetic	Semi-Synthetic
Base oil	100% chemical synthesis (ester or PAO)	Mineral oil + synthetic additives
Heat resistance	Excellent — stable at extreme heat & RPM	Good — suitable for normal temperatures
Cold start	Better — reaches engine faster when cold	Good — adequate for normal climates
Change interval	Longer (up to 10,000 km)	Shorter (5,000–7,000 km typical)
Price	Higher	Lower

Oil filter

Spec: Hiflofiltro HF204

Premium Hiflofiltro HF204
Premium K&N KN-204

Air filter

Spec: Hiflofiltro HFA1930

Standard Hiflofiltro HFA1930

Spark plug

Spec: NGK IMR8E-9HES

OEM NGK IMR8E-9
Premium NGK IMR8E-9
Standard NGK IMR8E-9

Front brake pads

Spec: OEM front pad (EBC equivalent: FA388HH)

Premium EBC FA388HH
Standard EBC FA388 (organic)

Rear brake pads

Spec: OEM rear pad (EBC equivalent: FA174HH)

Premium EBC FA174HH
Standard EBC FA174 (organic)

Front tire

Spec: 120/70 ZR17, 2.5 bar

OEM OEM front: 120/70 ZR17

Rear tire

Spec: 190/55 ZR17, 2.9 bar

OEM OEM 190/55 ZR17

Battery

Spec: OEM battery: Yuasa YTZ12S

Premium Yuasa YTZ14S

Brake fluid

Spec: DOT 4

Standard TotalEnergies HBF4

Coolant

Spec: 3.56 L coolant capacity

Service interval

Spec: 6 000 km / 12 months

OEM Engine oil + oil filter change
OEM Air filter inspection
OEM Spark plug check
OEM Brake fluid replacement: every 2 years

Valve check

Spec: 24 000 km

OEM Intake clearance: cold 0.13-0.19 mm
OEM Exhaust clearance: cold 0.28-0.32 mm

Suspension

Spec: 43 mm USD fork

OEM Fork: 43 mm USD fork

Drive chain
