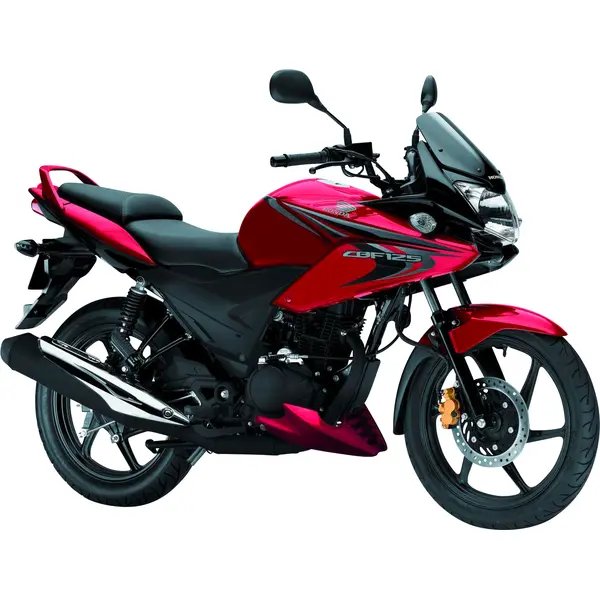

Honda CBF 125 (2009–2016) — Specs
Identity
Manufacturer: Honda
Model: CBF 125
Category: Motorcycle
Type: Motorcycle
Years: 2009 → 2016
Engine
Displacement (cc): 125
Cylinders: 1
Power (hp): 11
Power (kW): 8
Dimensions
Overall length: 2110 mm
Overall width: 760 mm
Overall height: 1130 mm
Wheelbase: 1480 mm
Ground clearance: 145 mm
Weight (kg): 128
Seat height (mm): 792
Tank (L): 13
Tires
Front pressure (bar): 1.7
Rear pressure (bar): 2
Drivetrain
Drive chain: 420 chain, 118 links
Sprockets (front / rear): 16 / 42
Ignition
Spark plug: NGK CPR7EA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-30, API SG
Engine oil (with filter, L): 0.9
Oil filter: Hiflofiltro HF113
Air filter: Hiflofiltro HFA1119
Brake fluid: DOT 4
Fuel consumption
Estimated: 2.6 L/100 km
Estimated range: ~500 km on a full tank (13.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX7L-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Valve clearance — intake cold 0.08 ± 0.02MM, exhaust cold 0.12 ± 0.02MM. Engine oil: oil grade SAE10W-30, API SG, 0.9 L with filter change. Spark plug: NGK CPR7EA-9 (gap 0.9 mm). Brake fluid: DOT 4. Chain: 118 links, sprockets 16/42 teeth. Tire pressure: front 1.7 bar, rear 2 bar (cold). Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-30, API SG, 0.9 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-30)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF113
- Premium Hiflofiltro HF113
- Premium K&N KN-113
Air filter
Spec: Hiflofiltro HFA1119
- Standard Hiflofiltro HFA1119
Spark plug
Spec: NGK CPR7EA-9, gap 0.9 mm
- OEM NGK CPR7EA-9
- Premium NGK CPR7EAIX-9
- Standard NGK CPR7EA-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA85HH)
- Premium EBC FA85HH
- Standard EBC FA85 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA85HH)
- Premium EBC FA85HH
- Standard EBC FA85 (organic)
Drive chain
Spec: 118 links | Sprockets 16/42 teeth / 118 links
Front tire
Spec: 1.7 bar
Rear tire
Spec: 2.0 bar
Battery
Spec: OEM battery: Yuasa YTX7L-BS
- Premium Yuasa YTX5L-BS
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
- OEM Intake clearance: cold 0.08 ± 0.02MM
- OEM Exhaust clearance: cold 0.12 ± 0.02MM
Suspension
Spec: 30 mm telescopic fork / 146±2.5ML SAE 10W
- OEM Fork: 30 mm telescopic fork
- OEM Fork oil grade: 146±2.5ML SAE 10W
