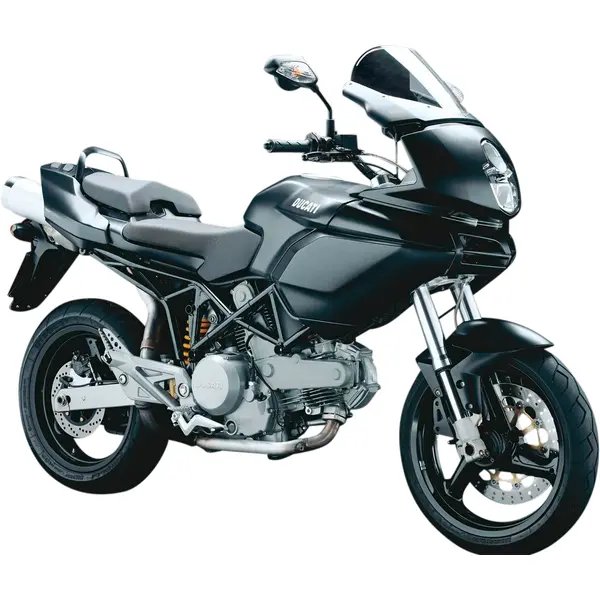

Ducati MULTISTRADA 620 (2005–2006) — Specs
Identity
Manufacturer: Ducati
Model: MULTISTRADA 620
Category: Motorcycle
Type: Motorcycle
Years: 2005 → 2006
Engine
Displacement (cc): 618
Cylinders: 2
Power (hp): 63
Power (kW): 46
Torque (Nm): 124
Dimensions
Overall length: 2150 mm
Overall width: 810 mm
Overall height: 1180 mm
Wheelbase: 1450 mm
Ground clearance: 155 mm
Weight (kg): 203
Seat height (mm): 830
Tank (L): 15
Tires
Front tire: 120/70 ZR17
Rear tire: 190/55 ZR17
Front pressure (bar): 2.1
Rear pressure (bar): 2.2
Drivetrain
Drive chain: 520 chain, 108 links
Sprockets (front / rear): 15 / 48
Ignition
Spark plug: NGK DCPR8E
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-40
Engine oil (with filter, L): 2.8
Oil filter: Hiflofiltro HF153
Air filter: OEM air filter
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~312 km on a full tank (15.0 L)
Service
Battery: OEM battery specification
Service interval (km): 15000
Service interval (months): 12
Valve check (km): 30000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 15,000 km or 12 months, whichever comes first. Valve clearance check every 30,000 km. Engine oil: oil grade SAE10W-40, 2.8 L with filter change. Spark plug: NGK DCPR8E (gap 0.9 mm). Brake fluid: DOT 4. Chain: 108 links, sprockets 15/48 teeth. Tire pressure: front 2.1 bar, rear 2.2 bar (cold). Tire size: front 120/70 ZR17, rear 190/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, 2.8 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF153
- Premium Hiflofiltro HF153
- Premium K&N KN-153
Air filter
Spark plug
Spec: NGK DCPR8E, gap 0.9 mm
- OEM NGK DCPR8E
- Premium NGK DCPR8EIX
- Standard NGK DCPR8E
Front brake pads
Rear brake pads
Drive chain
Spec: 108 links | Sprockets 15/48 teeth / 108 links
Front sprocket
Spec: 15 teeth
Rear sprocket
Spec: 48 teeth
Front tire
Spec: 120/70 ZR17, 2.1 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 190/55 ZR17, 2.2 bar
- OEM OEM 190/55 ZR17
Battery
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 15 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 30 000 km
- OEM Desmodromic valves — specialist service
Suspension
Spec: 43 mm USD fork / 550 ml SAE 7.5W
- OEM Fork: 43 mm USD fork
- OEM Fork oil grade: 550 ml SAE 7.5W
