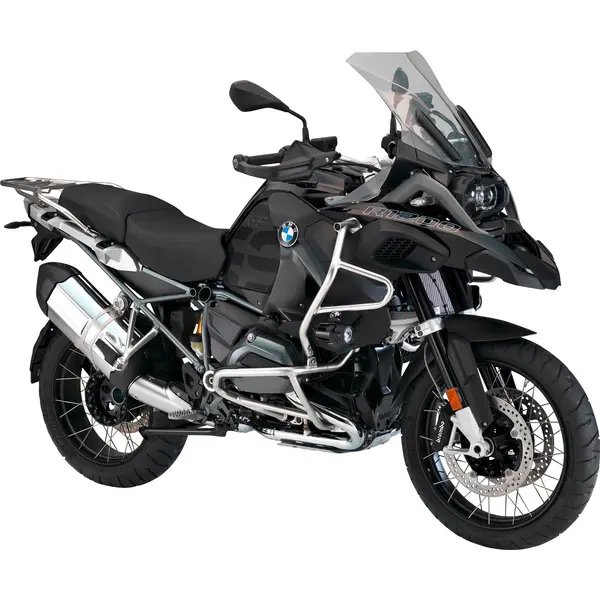

BMW R 1200 GS ADVENTURE (EURO 4) (2016–2018) — Specs
Identity
Manufacturer: BMW
Model: R 1200 GS ADVENTURE (EURO 4)
Category: Adventure
Type: Motorcycle
Years: 2016 → 2018
Engine
Displacement (cc): 1170
Cylinders: 2
Power (hp): 125
Power (kW): 92
Torque (Nm): 125
Dimensions
Overall length: 2120 mm
Overall width: 870 mm
Overall height: 1235 mm
Wheelbase: 1496 mm
Ground clearance: 130 mm
Weight (kg): 260
Seat height (mm): 890
Tank (L): 30
Tires
Front tire: 120/70 R19
Rear tire: 170/60 R17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Final drive: Shaft drive
Ignition
Spark plug: NGK LMAR8D-J
Plug gap: 0.7-0.8 mm
Fluids & Filters
Engine oil: SAE5W-40, API SL
Engine oil (with filter, L): 4
Oil filter: Hiflofiltro HF160
Air filter: Hiflofiltro HFA7915
Coolant (L): 1.5
Brake fluid: DOT 4
Fuel consumption
Manufacturer / WMTC: 5.0 L/100 km
Real-world range: ~600 km on a full tank (30.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: HVT-04
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 20000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 20,000 km. Valve clearance — intake cold 0.10-0.17 mm, exhaust cold 0.34-0.41 mm. Engine oil: oil grade SAE5W-40, API SL, 4 L with filter change. Spark plug: NGK LMAR8D-J (gap 0.7-0.8 mm). Brake fluid: DOT 4. Coolant capacity: 1.5 L. Drive: shaft drive. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 R19, rear 170/60 R17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 5W-40, 4.0 L (with filter)
- OEM OEM recommended engine oil (SAE 5W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF160
- Premium Hiflofiltro HF160
- Premium K&N KN-160
Air filter
Spec: Hiflofiltro HFA7915
- Standard Hiflofiltro HFA7915
Spark plug
Spec: NGK MAR9A-J, gap 0.8-0.9 mm
- OEM NGK MAR9A-J
- Premium NGK MAR9A-J
- Standard NGK MAR9A-J
Front brake pads
Spec: OEM front pad (EBC equivalent: FA630HH)
- Premium EBC FA630HH
- Standard EBC FA630 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA213HH)
- Premium EBC FA213HH
- Standard EBC FA213 (organic)
Front tire
Spec: 120/70 R19, 2.5 bar
- OEM OEM 120/70 R19
Rear tire
Spec: 170/60 R17, 2.9 bar
- OEM OEM 170/60 R17
Battery
Spec: OEM battery: Yuasa HVT-04
- OEM OEM battery: BMW HVT-01 (12V 12Ah AGM)
- Premium BMW HVT-01 (12V 12Ah AGM)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.50 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 20 000 km
- OEM Intake clearance: cold 0.10-0.17 mm
- OEM Exhaust clearance: cold 0.34-0.41 mm
Suspension
Spec: TELELEVER / 485 ml SAE 10W
- OEM Fork: TELELEVER
- OEM Fork oil grade: 485 ml SAE 10W
Drive chain
